SAML Authentication

SAML 101

Security Assertion Markup Language (SAML) is used to share authentication and authorization between parties. SAML is often used to provide Single Sign-On (SSO) between one or multiple Service Provider(s) (SP) and one Identity Provider (IDP).

For example, users will authenticate against identity.pentesterlab.com, once authenticated, they will be able to access serviceprovider1.libcurl.so, serviceprovider2.pentesterlab.com or serviceprovider3.ptl.io without having to re-authenticate against these services. This allows enterprises to only manage one source of truth for the management of their users.

Workflow

  1. The User-Agent (browser) tries to access the resource.

  2. The Service Provider (SP) sends a redirect to the Identity Provider (IDP).

  3. The User-Agent follows the redirect and accesses the IDP. The request contains a SAMLRequest parameter.

  4. The IDP sends back a response with a SAMLResponse.

  5. The SAMLResponse is submitted by the User-Agent to the SP.

  6. The user is now logged in for the Service Provider and can access the resource.

Inspecting the HTTP traffic

If we look at the HTTP traffic, we can see the following requests and responses:

First, the User-Agent gets redirected to the IDP with a SAMLRequest parameter:

Then, if the user is logged in, the IDP responds with a page that will automatically (<body onload="document.forms[0].submit();"...>) submit the SAMLResponse to the SP:

This will allow the SP to create a session for the user. The user is now logged based on the SAMLResponse value.

Signature Stripping

One of the common issues with protocols relying on signatures to prevent tampering comes from the fact that the signature is only verified if it's present. Here we are going to modify the email address inside the signature to become the user admin@libcurl.so for the Service Provider and we will remove the signature.

Comment Injection

One of the common issues with protocols relying on signatures to prevent tampering comes from the fact that the signed data is parsed differently by the system receiving it. Here we are going to create a malicious email address to become the user admin@libcurl.so for the Service Provider. The issue here is that the Service Provider will stripe the XML comments from the email address provided in the SAMLResponse by the IDP.

SAML: PySAML2 SSRF

LogoSSRF from `URI` attribute in `SAMLResponse` · Issue #510 · IdentityPython/pysaml2GitHub

The SSRF occurs in the URI field of the ds:Reference node of a SAML response. Normally, these look like this:

but you can change them to something like this:

and the URI will be resolved internally.

CVE-2021-21239

  • Get the SAML Response and remove the values in: ds:SignatureValue and ds:DigestValue

  • Remove the URI in the ds:Reference tag

  • Replace the full ds:x509Data Tag with the placeholder

  • Remove any extra spaces or new lines.

  • Sign the SAMLResponse using xmlsec --sign and a private key

  • Re-encode the SAMLResponse and send it to the Service Provider

XML Security Library: Downloadwww.aleksey.com

Authentication Bypass

LogoAuthentication Bypass: Mis-scoped SAML Sessions Enable User ImpersonationMedium

  1. Sign into target.com as an organization owner (attacker).

  2. Configure a SAML 2.0 Provider (Okta) on your attacker account by following SAML docs

  3. Enable SAML authentication and Enable user provisioning

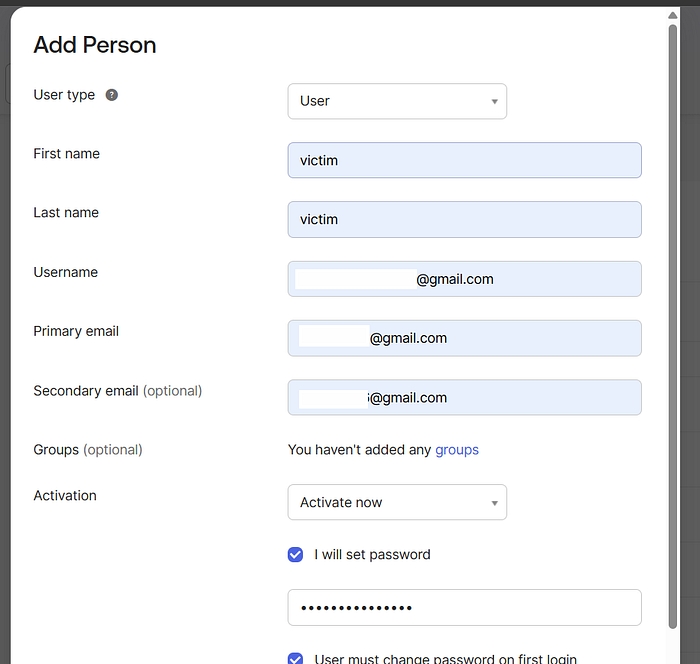

  4. In your SAML IdP (Okta admin console), create/add a person with the victim email and set a password for that account.

Press enter or click to view image in full size

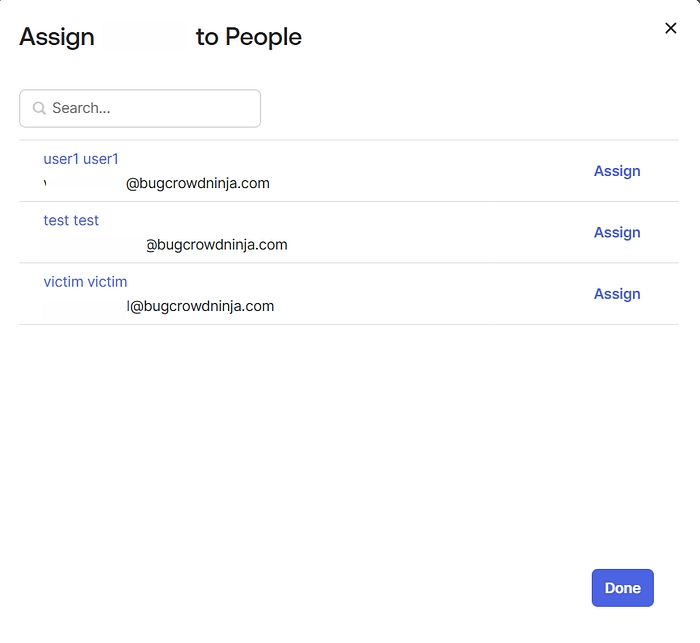

5. Also at Okta assign that newly created user to the Org application in Okta (so SAML assertions can be made).

  • Okta assignments path : https://trial-#lol-admin.okta.com/admin/app/org/instance/<INSTANCE_ID>#tab-assignments

  • Add user <victim@example.com> to the org app.

Press enter or click to view image in full size

6. Open an incognito/private browser window and navigate to your org’s SAML login URL (IdP-initiated) and sign-in with the victim email and the password you set in Okta:

7. After successful IdP authentication, the SP ( target.com) issues a session. As the attacker (exploit actions enabled by the victim session)

8. With the attacker-controlled session that now contains the victim user id (but attacker account id in token), issue requests that rely on user id for authorization (example: edit user settings).
